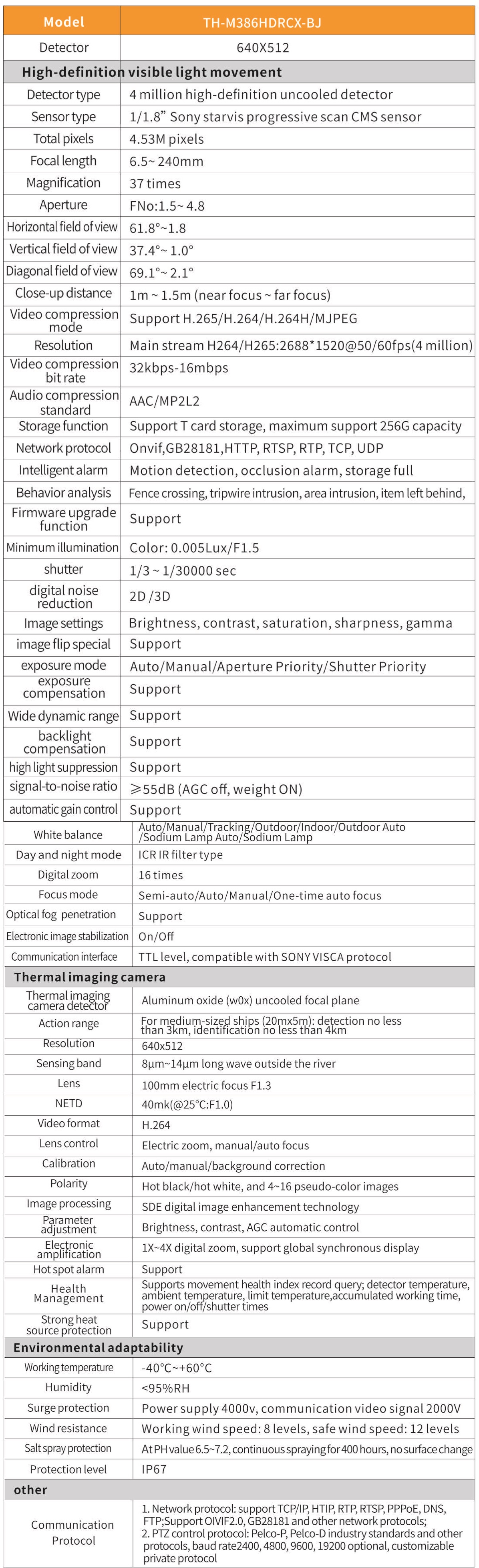

| Model | TH-M386HDRCX-BJ |
| Detector | 640X512 |
| High-definition visible light movement | |
| Detector type | 4 million high-definition uncooled detector |
| Sensor type | 1/1.8” Sony starvis progressive scan CMS sensor |
| Total pixels | 4.53M pixels |
| Focal length | 6.5~240mm |
| Magnification | 37 times |
| Aperture | FNo:1.5~4.8 |
| Horizontal field of view | 61.8°~1.8 |
| Vertical field of view | 37.4°~1.0° |
| Diagonal field of view | 69.1°~2.1° |
| Close-up distance | 1m ~ 1.5m (near focus ~ far focus) |
| Video compression mode | Support H.265/H.264/H.264H/MJPEG |
| Resolution | Main stream H264/H265:2688*1520@50/60fps(4 million) |
| Video compression bit rate | 32kbps-16mbps |
| Audio compression standard | AAC/MP2L2 |
| Storage function | Support T card storage, maximum support 256G capacity |
| Network protocol | Onvif,GB28181,HTTP,RTSP,RTP,TCP,UDP |
| Intelligent alarm | Motion detection, occlusion alarm, storage full |
| Behavior analysis | Fence crossing, tripwire intrusion, area intrusion, item left behind, |
| Firmware upgrade function | Support |
| Minimum illumination | Color:0.005Lux/F1.5 |
| shutter | 1/3 ~ 1/30000 sec |
| digital noise reduction | 2D /3D |
| Image settings | Brightness, contrast, saturation, sharpness, gamma |
| image flip special | Support |
| exposure mode | Auto/Manual/Aperture Priority/Shutter Priority |
| exposure compensation | Support |
| Wide dynamic range | Support |
| backlight compensation | Support |
| high light suppression | Support |
| signal-to-noise ratio | ≥55dB (AGC off, weight ON) |
| automatic gain control | Support |
| White balance | Auto/Manual/Tracking/Outdoor/Indoor/Outdoor Auto /Sodium Lamp Auto/Sodium Lamp |
| Day and night mode | ICR IR filter type |
| Digital zoom | 16 times |
| Focus mode | Semi-auto/Auto/Manual/One-time auto focus |
| Optical fog penetration | Support |
| Electronic image stabilization | On/Off |
| Communication interface | TTL level, compatible with SONY VISCA protocol |
| Thermal imaging camera | |
| Thermal imaging camera detector | Aluminum oxide (w0x) uncooled focal plane |
| Action range | For medium-sized ships (20mx5m): detection no less than 3km, identification no less than 4km |
| Resolution | 640x512 |
| Sensing band | 8um~14um long wave outside the river |
| Lens | 100mm electric focus F1.3 |
| NETD | 40mk(@25°C:F1.0) |
| Video format | H.264 |
| Lens control | Electric zoom, manual/auto focus |
| Calibration | Auto/manual/background correction |
| Polarity | Hot black/hot white, and 4～16 pseudo-color images |
| Image processing | SDE digital image enhancement technology |
| Parameter adjustment | Brightness, contrast, AGC automatic control |
| Electronic amplification | 1X～4X digital zoom, support global synchronous display |
| Hot spot alarm | Support |
| Health Management | Supports movement health index record query; detector temperature, ambient temperature, limit temperature, accumulated working time, power on/off/shutter times |
| Strong heat source protection | Support |
| Environmental adaptability | |
| Working temperature | -40°C~+60°C |
| Humidity | <95%RH |
| Surge protection | Power supply 4000v, communication video signal 2000V |
| Wind resistance | Working wind speed: 8 levels, safe wind speed: 12 levels |
| Salt spray protection | At PH value 6.5～7.2, continuous spraying for 400 hours, no surface change |
| Protection level | IP67 |
| other | |
| Communication Protocol | 1. Network protocol: support TCP/IP, HTIP, RTP, RTSP, PPPoE, DNS, FTP; Support OIVIF2.0, GB28181 and other network protocols; 2. PTZ control protocol: Pelco-P, Pelco-D industry standards and other protocols, baud rate 2400, 4800, 9600, 19200 optional, customizable private protocol |
TH-M386HDRCX-BJ
Multispectral Laser Gyro Tracking Night Vision System
ModelTH-M386HDRCX-BJDetector640X512High-definition visible light movementDetecto
Strong wind resistance, high precision, good stability;
Protection levelreaches lp67;
Integrates automatic tracking module and precision electronic control system；
Technical Parameter
