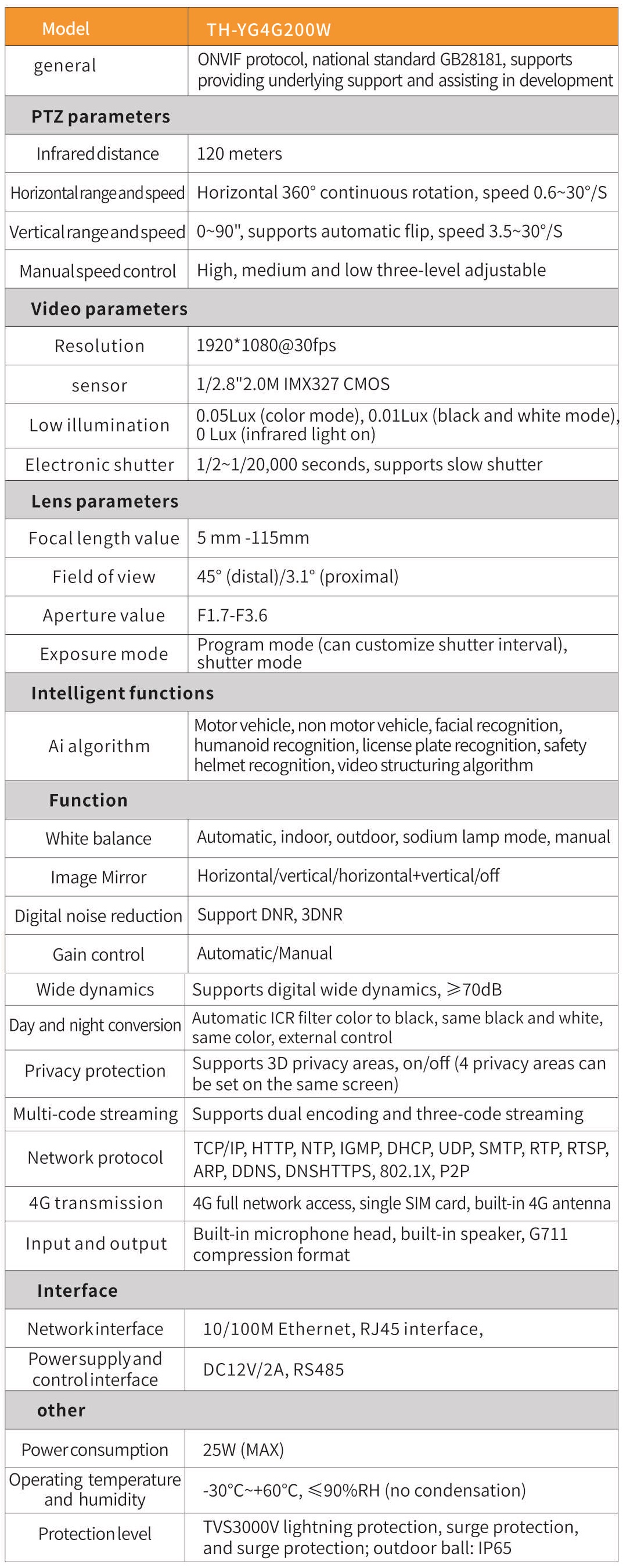

| Model | TH-YG4G200W |
| general | ONVIF protocol, national standard GB28181, supports providing underlying support and assisting in development |
| PTZ parameters | |
| Infrared distance | 120 meters |
| Horizontal range and speed | Horizontal 360° continuous rotation, speed 0.6~30°/S |
| Vertical range and speed | 0~90", supports automatic flip, speed 3.5~30°/S |
| Manual speed control | High, medium and low three-level adjustable |
| Video parameters | |
| Resolution | 1920*1080@30fps |
| sensor | 1/2.8"2.0M IMX327 CMOS |
| Low illumination | 0.05Lux (color mode), 0.01Lux (black and white mode), 0 Lux (infrared light on) |
| Electronic shutter | 1/2~1/20,000 seconds, supports slow shutter |
| Lens parameters | |
| Focal length value | 5 mm - 115mm |
| Field of view | 45° (distal)/3.1° (proximal) |
| Aperture value | F1.7 - F3.6 |
| Exposure mode | Program mode (can customize shutter interval), shutter mode |
| Intelligent functions | |
| Ai algorithm | Motor vehicle, non motor vehicle, facial recognition, humanoid recognition, license plate recognition, safety helmet recognition, video structuring algorithm |
| Function | |
| White balance | Automatic, indoor, outdoor, sodium lamp mode, manual |
| Image Mirror | Horizontal/vertical/horizontal+vertical/off |
| Digital noise reduction | Support DNR, 3DNR |
| Gain control | Automatic/Manual |
| Wide dynamics | Supports digital wide dynamics, ≥70dB |
| Day and night conversion | Automatic ICR filter color to black, same black and white, same color, external control |
| Privacy protection | Supports 3D privacy areas, on/off (4 privacy areas can be set on the same screen) |
| Multi-code streaming | Supports dual encoding and three-code streaming |
| Network protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNSHTTPS, 802.1X, P2P |
| 4G transmission | 4G full network access, single SIM card, built-in 4G antenna |
| Input and output | Built-in microphone head, built-in speaker, G711 compression format |
| Interface | |
| Network interface | 10/100M Ethernet, RJ45 interface, |
| Power supply and control interface | DC12V/2A, RS485 |
| other | |
| Power consumption | 25W (MAX) |
| Operating temperature and humidity | -30°C~+60°C, ≤90%RH (no condensation) |
| Protection level | TVS3000V lightning protection, surge protection, and surge protection; outdoor ball: IP65 |
TH-YG4G200W
Mobile video surveillance terminal
ModelTH-YG4G200WgeneralONVIF protocol, national standard GB28181, supports provi
120m infrared distance, 360° rotation of the entire field of view without dead angles
Al Algorithm
360° rotation, no blind spots in the entire field of view,speed 0.6~30°/s
Tripod more detailed and careful
5mm~115mm focal length
Technical Parameter
