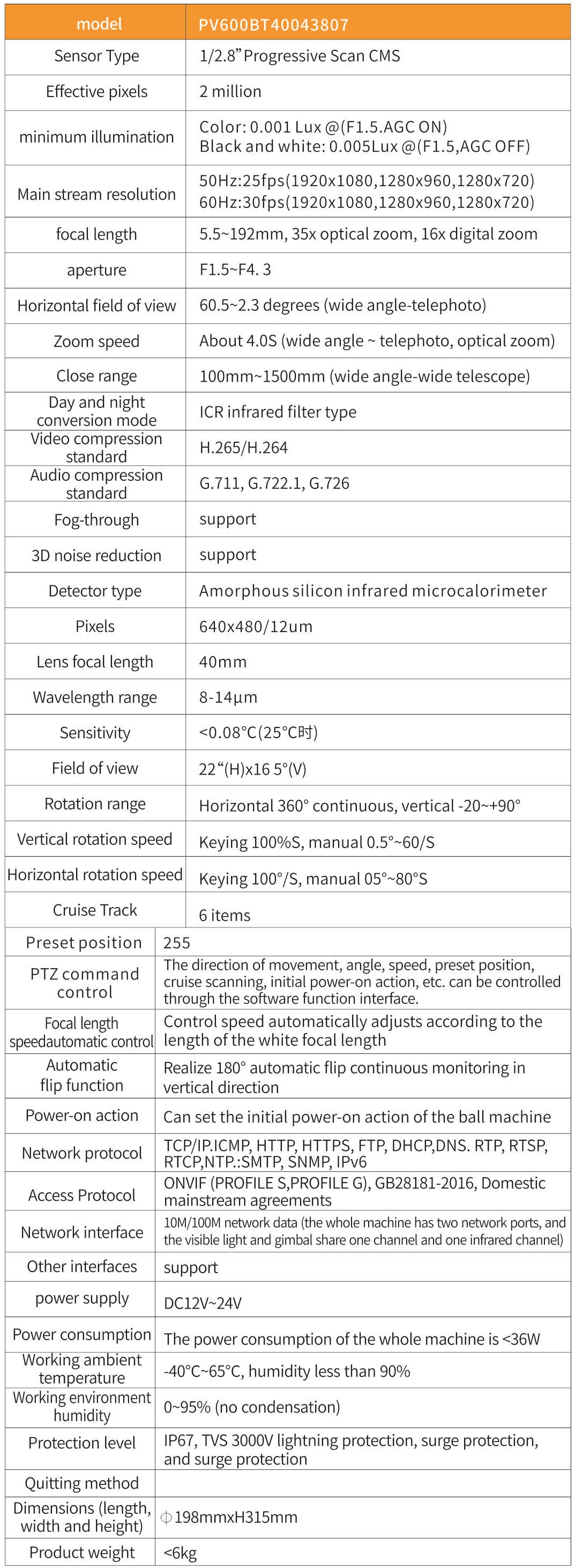

| model | PV600BT40043807 |
| Sensor Type | 1/2.8” Progressive Scan CMS |
| Effective pixels | 2 million |
| minimum illumination | Color: 0.001 Lux @(F1.5.AGC ON); Black and white: 0.005Lux @(F1.5,AGC OFF) |
| Main stream resolution | 50Hz:25fps(1920x1080,1280x960,1280x720); 60Hz:30fps(1920x1080,1280x960,1280x720) |
| focal length | 5.5~192mm, 35x optical zoom, 16x digital zoom |
| aperture | F1.5~F4.3 |
| Horizontal field of view | 60.5~2.3 degrees (wide angle-telephoto) |
| Zoom speed | About 4.0S (wide angle ~ telephoto, optical zoom) |
| Close range | 100mm~1500mm (wide angle-wide telescope) |
| Day and night conversion mode | ICR infrared filter type |
| Video compression standard | H.265/H.264 |
| Audio compression standard | G.711, G.722.1, G.726 |
| Fog-through | support |
| 3D noise reduction | support |
| Detector type | Amorphous silicon infrared microcalorimeter |
| Pixels | 640x480/12um |
| Lens focal length | 40mm |
| Wavelength range | 8 - 14μm |
| Sensitivity | <0.08°C (25°C 时) |
| Field of view | 22“(H)×16 5°(V) |
| Rotation range | Horizontal 360° continuous, vertical -20~+90° |
| Vertical rotation speed | Keying 100%S, manual 0.5°~60/S |
| Horizontal rotation speed | Keying 100°/S, manual 05°~80°S |
| Cruise Track | 6 items |
| Preset position | 255 |
| PTZ command control | The direction of movement, angle, speed, preset position, cruise scanning, initial power-on action, etc. can be controlled through the software function interface. |
| Focal length speed automatic control | Control speed automatically adjusts according to the length of the white focal length |
| Automatic flip function | Realize 180° automatic flip continuous monitoring in vertical direction |
| Power-on action | Can set the initial power-on action of the ball machine |
| Network protocol | TCP/IP.ICMP, HTTP, HTTPS, FTP, DHCP,DNS. RTP, RTSP, RTCP,NTP.:SMTP, SNMP, IPv6 |
| Access Protocol | ONVIF (PROFILE S,PROFILE G), GB28181-2016, Domestic mainstream agreements |
| Network interface | 10M/100M network data (the whole machine has two network ports, and the visible light and gimbal share one channel and one infrared channel) |
| Other interfaces | support |
| power supply | DC12V~24V |
| Power consumption | The power consumption of the whole machine is <36W |
| Working ambient temperature | -40°C~65°C, humidity less than 90% |
| Working environment humidity | 0~95% (no condensation) |
| Protection level | IP67, TVS 3000V lightning protection, surge protection, and surge protection |
| Quitting method | |
| Dimensions (length, width and height) | Φ198mmxH315mm |
| Product weight | <6kg |
PV 600BT
Vehicle-mounted PTZ Camera
This product is an integrated spherical design, can be equipped with small and medium lens infrared thermal imager and small and medium distance visible light movement, small size, light weight, high speed of a spherical camera, can be widely used in substations, distribution rooms, petrochemical industry, inspection and quarantine, industrial testing, rail transport, fire monitoring and other temperature measurement occasions.Translated with DeepL.com (free version)
With infrared thermal imaging, maximum support for 40mm lens
All-weather environment design, high-strength aluminium alloy precision casting shell,impact resistance,anti-corrosion,protection level up to Ip67;
360°infinite position rotation, elevation angle of 180°without blind spot,vertical angle of 20°to 90°
Built-in network thermal imaging and HD network all-in-one. Can adapt to a variety of environments dual-channel image for monitoring
Thermal imaging can be replaced with laser, with the farthes night vision distance up to 500 metres
Power supply voltage input for ordinary monitoring occasions:DC12V-24V;
Installation method, shock-resistant device optional;
Technical Parameter
