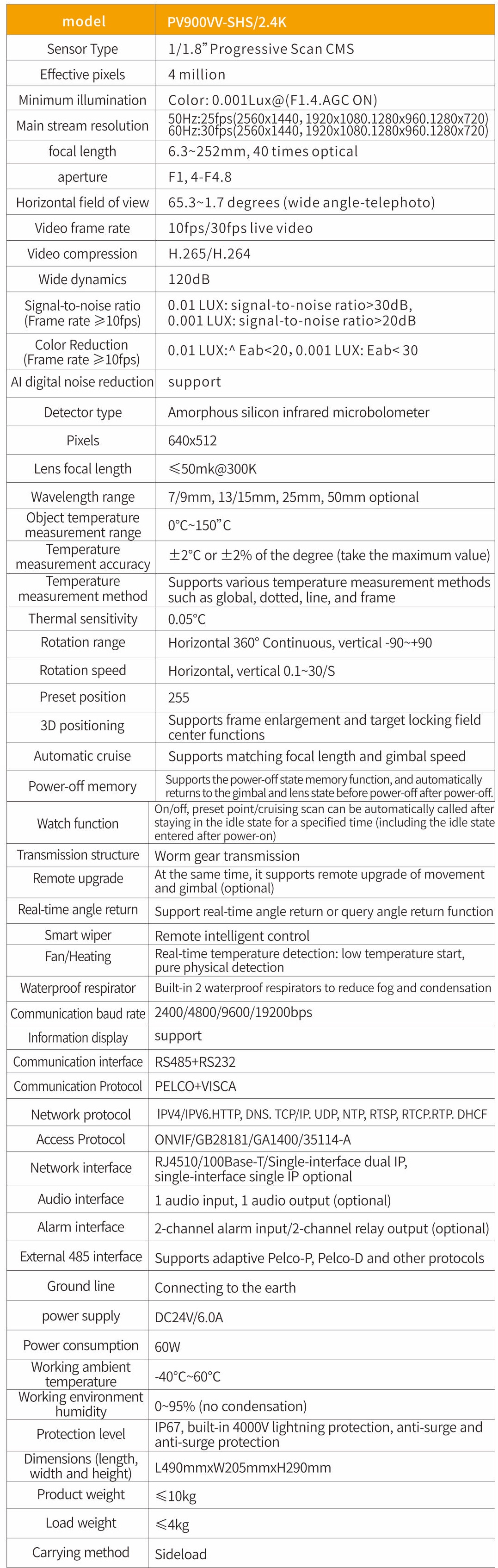

| model | PV900VV-SHS/2.4K |
| Sensor Type | 1/1.8” Progressive Scan CMS |
| Effective pixels | 4 million |
| Minimum illumination | Color: 0.001Lux@(F1.4.AGC ON) |
| Main stream resolution | 50Hz:25fps(2560x1440,1920x1080.1280x960.1280x720); 60Hz:30fps(2560x1440,1920x1080.1280x960.1280x720) |
| focal length | 6.3~252mm, 40 times optical |
| aperture | F1, 4 - F4.8 |
| Horizontal field of view | 65.3~1.7 degrees (wide angle - telephoto) |
| Video frame rate | 10fps/30fps live video |
| Video compression | H.265/H.264 |
| Wide dynamics | 120dB |
| Signal-to-noise ratio (Frame rate ≥10fps) | 0.01 LUX: signal-to-noise ratio>30dB, 0.001 LUX: signal-to-noise ratio>20dB |
| Color Reduction (Frame rate ≥10fps) | 0.01 LUX:^ Eab<20, 0.001 LUX: Eab< 30 |
| AI digital noise reduction | support |
| Detector type | Amorphous silicon infrared microbolometer |
| Pixels | 640x512 |
| Lens focal length | ≤50mk@300K |
| Wavelength range | 7/9mm, 13/15mm, 25mm, 50mm optional |
| Object temperature measurement range | 0°C~150°C |
| Temperature measurement accuracy | ±2°C or ±2% of the degree (take the maximum value) |
| Temperature measurement method | Supports various temperature measurement methods such as global, dotted, line, and frame |
| Thermal sensitivity | 0.05°C |
| Rotation range | Horizontal 360° Continuous, vertical -90~+90 |
| Rotation speed | Horizontal, vertical 0.1~30/S |
| Preset position | 255 |
| 3D positioning | Supports frame enlargement and target locking field center functions |
| Automatic cruise | Supports matching focal length and gimbal speed |
| Power-off memory | Supports the power-off state memory function, and automatically returns to the gimbal and lens state before power-off after power-off. |
| Watch function | On/off, preset point/cruising scan can be automatically called after staying in the idle state for a specified time (including the idle state entered after power-on) |
| Transmission structure | Worm gear transmission |
| Remote upgrade | At the same time, it supports remote upgrade of movement and gimbal (optional) |
| Real-time angle return | Support real-time angle return or query angle return function |
| Smart wiper | Remote intelligent control |
| Fan/Heating | Real-time temperature detection: low temperature start, pure physical detection |
| Waterproof respirator | Built-in 2 waterproof respirators to reduce fog and condensation |
| Communication baud rate | 2400/4800/9600/19200bps |
| Information display | support |
| Communication interface | RS485+RS232 |
| Communication Protocol | PELCO+VISCA |
| Network protocol | IPV4/IPV6.HTTP, DNS. TCP/IP. UDP, NTP, RTSP, RTCP.RTP. DHCF |
| Access Protocol | ONVIF/GB28181/GA1400/35114-A |
| Network interface | RJ4510/100Base-T/Single-interface dual IP, single-interface single IP optional |
| Audio interface | 1 audio input, 1 audio output (optional) |
| Alarm interface | 2-channel alarm input/2-channel relay output (optional) |
| External 485 interface | Supports adaptive Pelco-P, Pelco-D and other protocols |
| Ground line | Connecting to the earth |
| power supply | DC24V/6.0A |
| Power consumption | 60W |
| Working ambient temperature | -40°C~60°C |
| Working environment humidity | 0~95% (no condensation) |
| Protection level | IP67, built-in 4000V lightning protection, anti-surge and anti-surge protection |
| Dimensions (length, width and height) | L490mmxW205mmxH290mm |
| Product weight | ≤10kg |
| Load weight | ≤4kg |
| Carrying method | Sideload |
PV 900VV
Dual-spectrum low-power gimbal camera-temperature measurement
This product is designed for long distance, can be equipped with middle and long lens infrared thermal imager and middle and long distance visible light movement, small size, light weight, worm gear drive, with self-locking function, high reliability of a PT-head camera, canIt is widely used in straw burning, fishery prohibition, forest fire prevention, perimeter oil fields, border and coastal defense and other places.
Medium-telephoto observation thermal imager + medium and long focal length high-definition network visible light movement
Worm gear transmission, self-locking function, strong wind resistance Supports power-off memory function, and automatically returns tothe gimbal and lens state before power-off after power-off.
Supports 3D positioning function, click tracking and amplification can be achieved through client/lE.
Outdoor lP67 protection level, lightning protection, surge protection,and surge protection.
Thermal imager supports intelligent high temperature warning function, multi-speed threshold value can be adjusted, menufunction selection.
Support cancellation of germanium glass windows.
Intelligent algorithms such as visible flame detection, bird recognition,and ship recognition.
Technical Parameter
