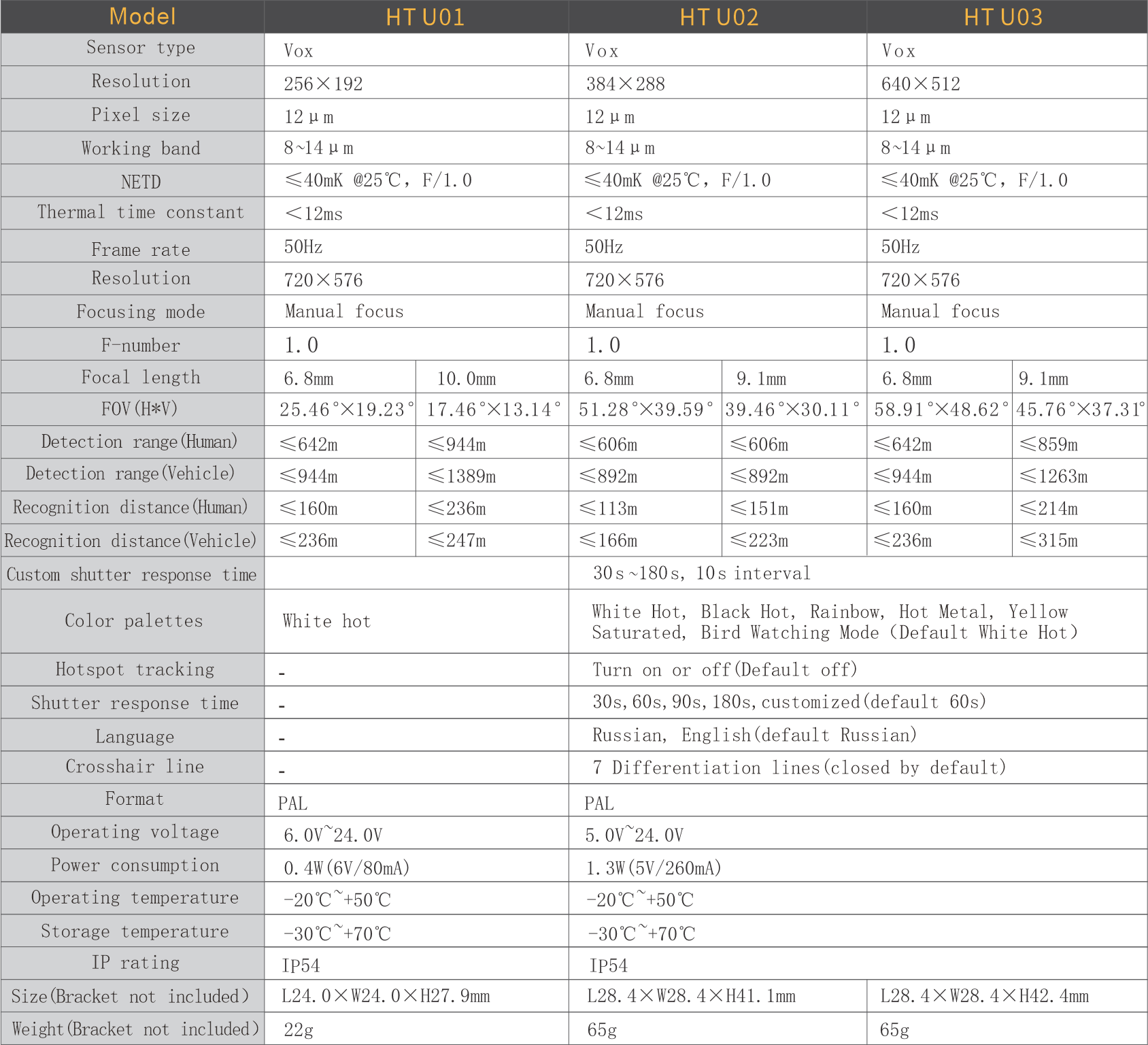

| model | HT U01 | HT U02 | HT U03 | |||
| Detector type | Vox | Vox | Vox | |||
| Infrared resolution | 256x192 | 384x288 | 640x512 | |||
| Cell size | 12 μm | 12 μm | 12 μm | |||
| Working band | 8 ～ 14 μm | 8 ～ 14 μm | 8 ～ 14 μm | |||
| NETD | ≤40mK@25°C, F/1.0 | ≤40mK@25°C, F/1.0 | ≤40mK@25°C, F/1.0 | |||
| Hot time constant | <12ms | <12ms | <12ms | |||
| Frame rate | 50Hz | 50Hz | 50Hz | |||
| Screen resolution | 720x576 | 720x576 | 720x576 | |||
| Focusing method | Manual focus | Manual focus | Manual focus | |||
| F coefficient | 1.0 | 1.0 | 1.0 | |||
| focal length | 6.8mm | 10.0mm | 6.8mm | 9.1mm | 6.8mm | 9.1mm |
| Field of view | 25.46°×19.23° | 17.46°×13.14° | 51.28°×39.59° | 39.46°×30.11° | 58.91°×48.62° | 45.76°×37.31° |
| Detected distance (character) | ≤642m | ≤944m | ≤606m | ≤606m | ≤642m | ≤859m |
| Detection distance (vehicle) | ≤944m | ≤1389m | ≤892m | ≤892m | ≤944m | ≤1263m |
| Recognize distance (character) | ≤160m | ≤236m | ≤113m | ≤151m | ≤160m | ≤214m |
| Identify distance (vehicle) | ≤236m | ≤S247m | ≤166m | ≤223m | ≤236m | ≤315m |
| Custom shutter response time | / | 30 seconds ~ 180 seconds, 10 seconds apart | ||||
| Pseudo-color mode | White heat | White heat，black heat, rainbow, hot metal, yellow saturation, bird watching mode (default white heat) | ||||
| Hot Spot Tracking | / | Turn on or close (default closed) | ||||
| Shutter time selection | / | 30 seconds, 60 seconds, 90 seconds, 180 seconds, custom (default 60 seconds) | ||||
| language | / | Russian, English (default Russian) | ||||
| Differentiation line | / | 7 differentiation lines (default off) | ||||
| Standard | PAL | PAL | ||||
| Operating voltage range | 6.0V-24.0V | 5.0V-24.0V | ||||
| Power consumption/battery capacity | 0.4W(6V/80mA) | 1.3W(5V/260mA) | ||||
| Operating temperature | -20°C~+50°C | -20°C~+50°C | ||||
| Storage temperature | -30°C~+70°C | 30°C~+70°C | ||||
| Waterproof grade | IP54 | IP54 | ||||
| Size(excluding bracket) | L24.0xW24.0xH27.9mm | L28.4xW28.4xH41.1mm | L28.4xW28.4xH42.4mm | |||
| Weight(excluding bracket) | 22g | 65g | 65g | |||
HT U01/HT U02/HT U03
Infrared camera module
Pod Module
The maximum resolution ofinfrared thermal image is 640*512
Support hot spot tracking and 7 types of dividing
58.91°x48.62 ° field of view
6.8mm/9.1mm/10.0mm Three professional lenses
1389m vehicle detection distance and 315m vehicle identification distance
944m character detection distance and 236m character recognition distance
infrared thermogram
Technical Parameter
