| Model | HT A501 |
| Material/Shell | Plastic |
| Display Screen | Square screen 2.0 inches |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane |
| Infrared thermal resolution | 256*192 |
| Pixel Size | 12 μ m |
| NETD | ≤50mk |
| Frame Rate | 50Hz |
| Focal Length | 25mm |
| Focusing Mode | Manual |
| Storage Type | Built-in 16G |
| Built-in storage | 16G |
| Interface Type | TYPE-C |
| Interface function | Charge+Store Read |
| Color Palette | White Hot, Black Hot, Fire Hot, Rainbow, Iron Red, |
| Magnification | 1X/2X/4X |
| APP | Android+IOS |
| BTrajectory calculation | Support |
| Battery Working time | ≥4 hours |
| Working temperature | -20～60℃ |
| Storage temperature | -30～70℃ |
| Protection Level | IP66 |
| Impact | ≥600G |
HT A501
This product adopts 25mm objective lens, mainly used for crossbow shooting photography, video, laser ranging, ballistic calculation, with White Hot/Black Hot/Rainbow/Iron Red/ Fire Hotfive color modes;The 2.0-inch display magnifies objects by 1 to 4 times, helping users improve shooting accuracy.
Multiple parameters and color modes can be set.
25mm focal length, clear and fine shooting
Dustproof and waterproof function

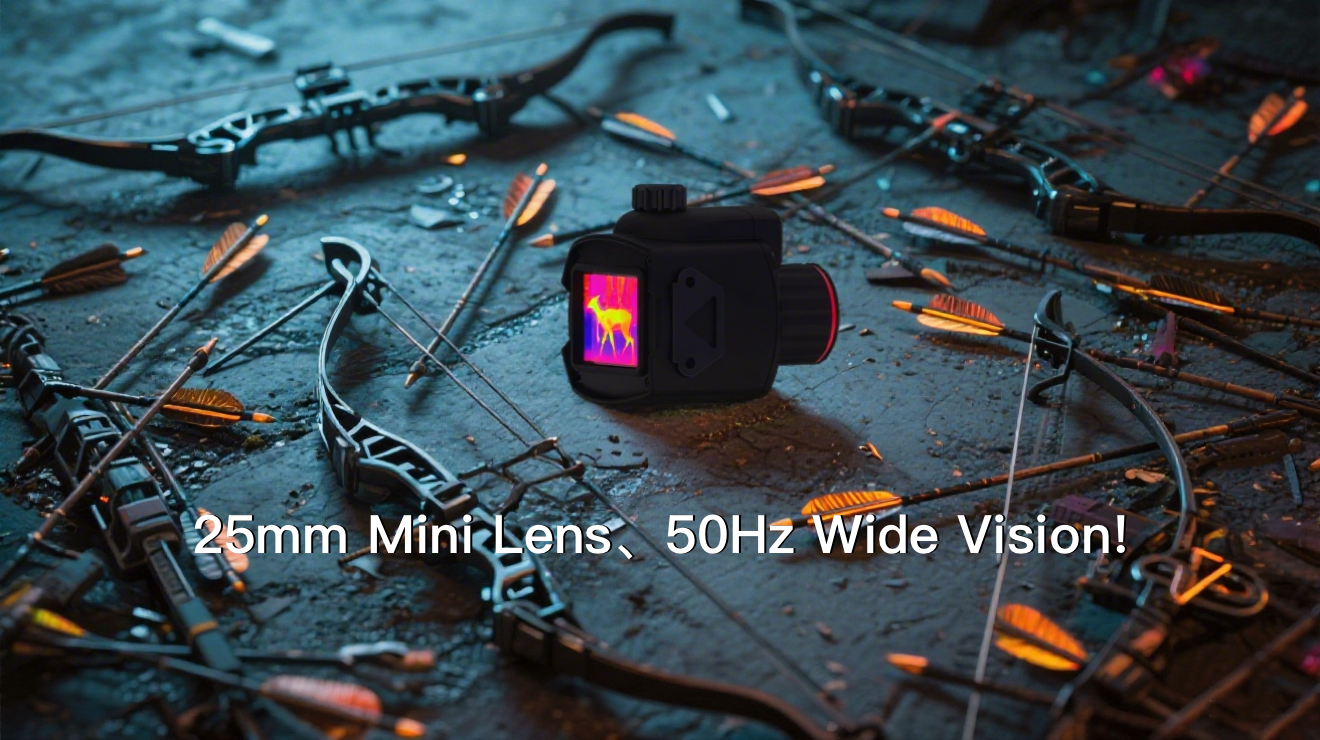

25mm Mini Lens, 50Hz Wide Vision!
The HT A501 compact thermal imager features a high-sensitivity 356×192 detector paired with a lightweight 25mm lens, weighing just 280g for easy pocket storage. Its 50Hz high frame rate delivers smooth, blur-free dynamic imaging, while five color palettes (White Hot/Black Hot/Iron Hot/Rainbow/Iron Red) enable instant adaptation to various scenarios with single-touch switching.
infrared thermogram
