| Model | HT A6 | HT A7 |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane | |
| Pixel Size | 12 μ m | |
| NETD | <50mK @25℃, F#1.0, 25Hz | |
| Focusing Mode | Manual | |
| Spectral Rangeage | 8~14 μm | |
| Infrared thermal resolution | 256×192 | 384×288 |
| Focal Length | 25mm | 35mm |
| Viewing Angle | 7.03°×5.39° | 10.7°×8.0° |
| Frame Rate | 50Hz | 50Hz |
| Magnification | 1x/2x/4x | 1x/2x/4x/8x |
| Display Resolution | 0.39 Inch OLED | |
| Diopter Adjustment | -6D~4D | |
| Color Palette | White Hot, Black Hot, Fire Hot, Rainbow, Iron Red, Cold Color | |
| Language | Chinese, English | |
| Built-in storage | Built-in 16G | |
| Battery | 2000mAh（18500 Rechargeable Lithium Battery） | |
| Battery Working time | ≥5 hours | ≥4 hours |
| Working temperature | -20℃~+60℃ | |
| Storage temperature | -30℃~+70℃ | |
| Protection Level | IP66 | |
| Product Size | 192×68.9×62mm | 200×68.9×62mm |
| Product Weight | 570g | 580g |
| Other Specifications | ||
| Lens | 25mm | 35mm |
| Detection Distance-Human | 1181m | 1653m |
| Detection Distance-Vehicle | 3125m | 4375m |
| Identification Distance-Human | 295m | 413m |
| Identification Distance-Vehicle | 781m | 1094m |
HT A6/A7

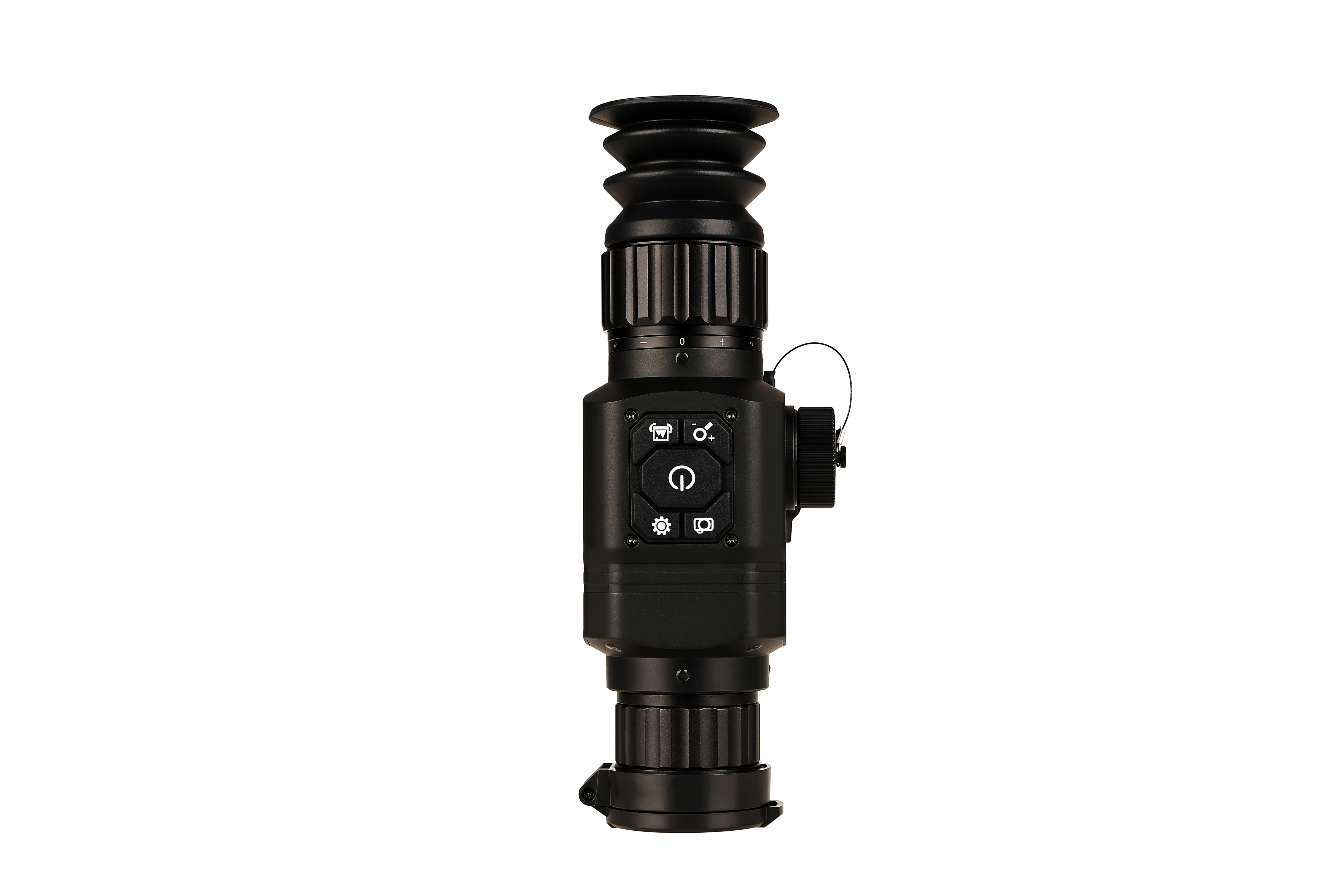

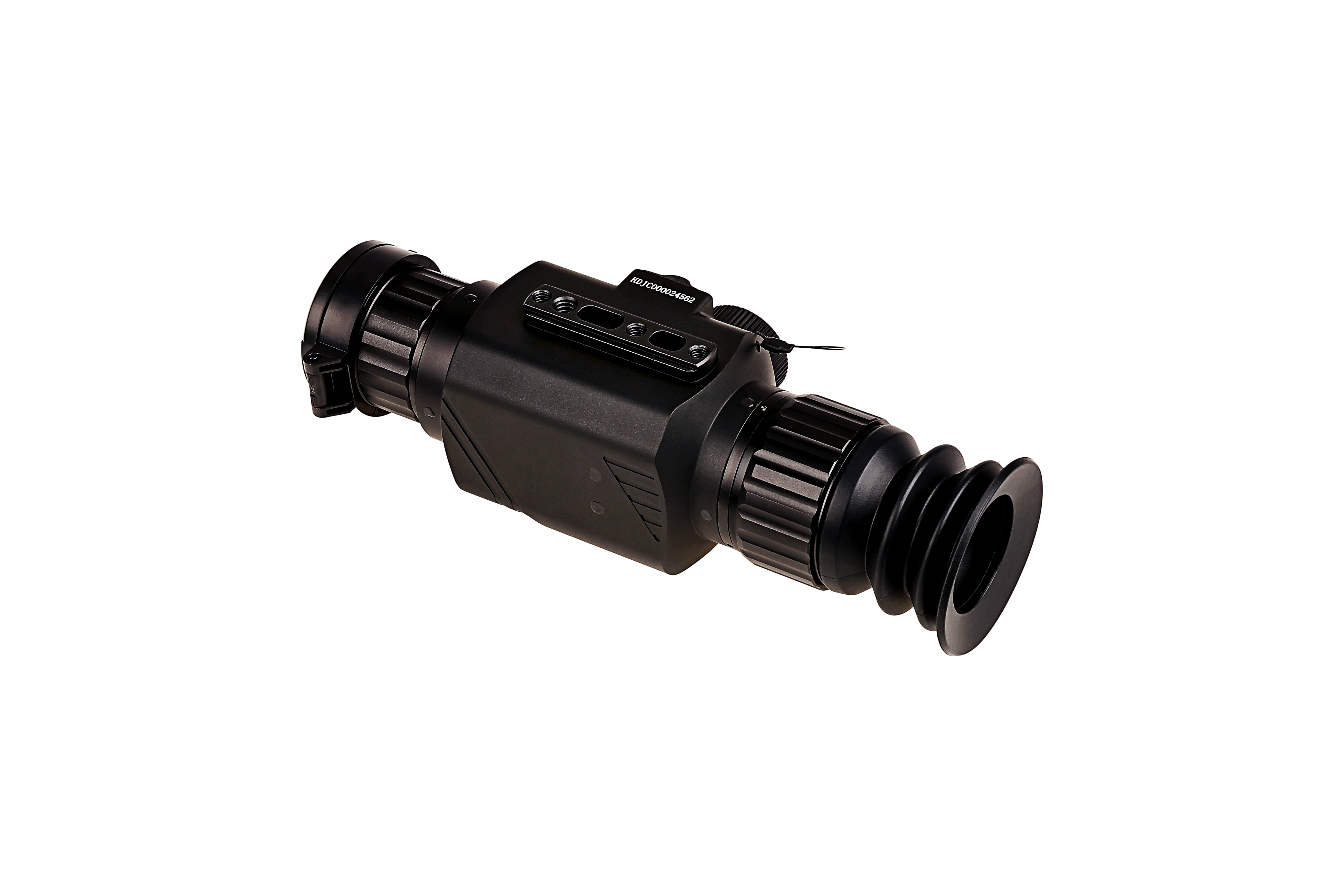

HT A6/A7 Monocular Thermal Imager
Xintai HT A6/A7 Monocular Handheld Thermal Imager – a high-performance optic built for outdoor enthusiasts. Lightweight, long-lasting, and ready for extended field use; ultra-high magnification delivers crisp, true-to-life long-range views that bring distant details into sharp relief. Fast multi-target lock and wide-area coverage let you pinpoint critical information in the most complex environments.
Outdoor-optimized: ultra-light, compact, and long-lasting battery for hours of field use—less weight, more adventure.
Ultra-high magnification renders distant detail in lifelike clarity, bringing far-off scenes within arm’s reach.
Rapidly detects and locks multiple targets across a wide area, boosting observation efficiency for diverse surveillance and intel-gathering missions.
Ultimate Night Hunting Gear - Precision Lock, One-Shot Victory!
Engineered specifically for hunters, the HT A6/A7 features a high-sensitivity 256×192 infrared detector with 50Hz refresh rate, delivering real-time thermal imaging to track moving targets without motion blur. The 1024×768 HD display combined with 8x digital zoom (1x/2x/4x/8x) reveals subtle movements at extended ranges.
infrared thermogram
Technical Parameter
