| Model | HT B101 |
| Detector Type | VOx |
| Spectral Range | 8~14μm |
| Infrared Image Resolution | 640×512 |
| Pixel Size | 12μm |
| NETD | ≤20 mk@F1.0, 300K |
| Focal Length | 50mm |
| Focusing Mode | Manual |
| Visible Image Resolution | 1920×1080 |
| Lens | 25mm Fixed-focus lens |
| Display Screen Type | 0.39 Inch Color OLED |
| Visible Image Resolution | 1024×768 |
| Interpupillary Distance | -56~71 mm |
| Diopter Adjustment | -5D~+5D |
| Magnification | 1X/2X/4X |
| Storage Capacity | 64G |
| WIFI Interface | Support |
| Laser Ranging | 1200m |
| Electronic Compass | Support |
| Image Mode | Infrared/Glimmer/Dual Light Fusion /PIP |
| Color Palette | White Hot,Black Hot,Fire Hot,Rainbow,Iron Red,Cold Color |
| Battery Life | ＞6h |
| Protection Level | IP66 |
| Product Size | 194×150×65mm |
| Product Weight | 980g |
HT B101
HT B101 Binocular Handheld Thermal Imaging Telescope
Xintai HT-B101 Binocular Handheld Thermal Imager belongs to the professional dual-lens outdoor series. Its binocular design ensures comfortable, stereoscopic, and immersive thermal observation. Integrating high-definition imaging, accurate temperature measurement, and rugged outdoor performance, it is ideal for night reconnaissance, field exploration, search and rescue, and industrial inspection. This powerful tool helps you perceive critical details and make informed decisions in extreme environments.
Immersive Binocular Vision：Ergonomic dual-eye design with adjustable IPD and diopter reduces eye strain and delivers stereoscopic viewing experience.
Dual-Spectrum HD Imaging：640×512 VOx detector with ≤20mK sensitivity switches between IR/low-light/fusion/PIP modes for optimal clarity day or night.
Smart Features：1200m laser rangefinder、GPS & e-compass、Wi-Fi transmission、64GB storage
Rugged & Portable：IP66 rated, 6+ hours runtime, only 980g weight - ideal for field reconnaissance and surveillance missions.

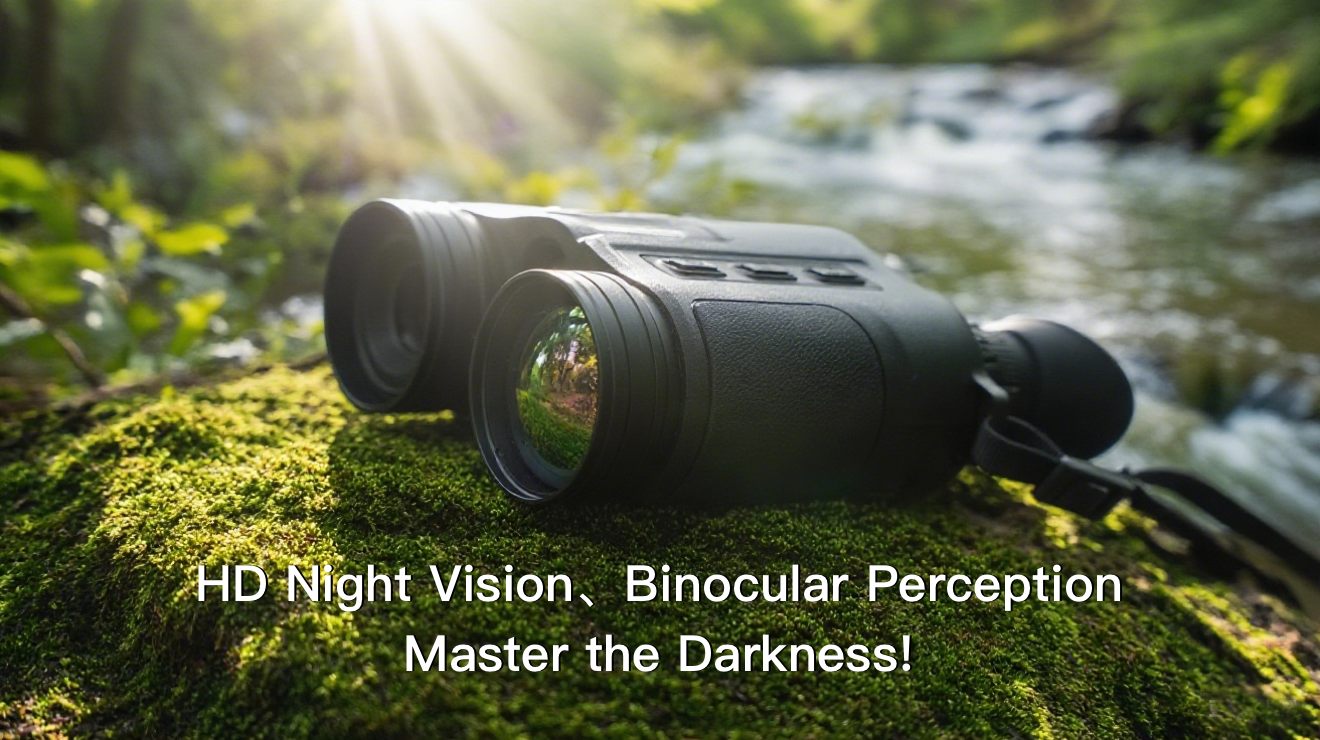

HD Night Vision, Binocular Perception, Master the Darkness!
Equipped with a high-performance 640×512 infrared detector and 1024×768 HD OLED display, the HT B101 delivers exceptionally sharp and detailed thermal imaging. Its true binocular optical design provides comfortable stereoscopic observation, significantly reducing eye strain during prolonged use.
infrared thermogram
Technical Parameter
